Most TV ports go unnoticed as soon as every thing is plugged in — besides maybe HDMI and USB. However for superior customers, the RS-232 serial port is usually a highly effective device for fine-tuned house theater and sensible gadget management.
Additionally: I found 7 low-cost ways to make my TV sound a lot better (even without a soundbar)
With some persistence and greater than a little bit know-how, you’ll be able to create a completely automated house leisure system with timed content material, simultaneous broadcasts to a number of rooms, and even diagnostic testing.
What’s an RS-232 serial port, and what does it do?

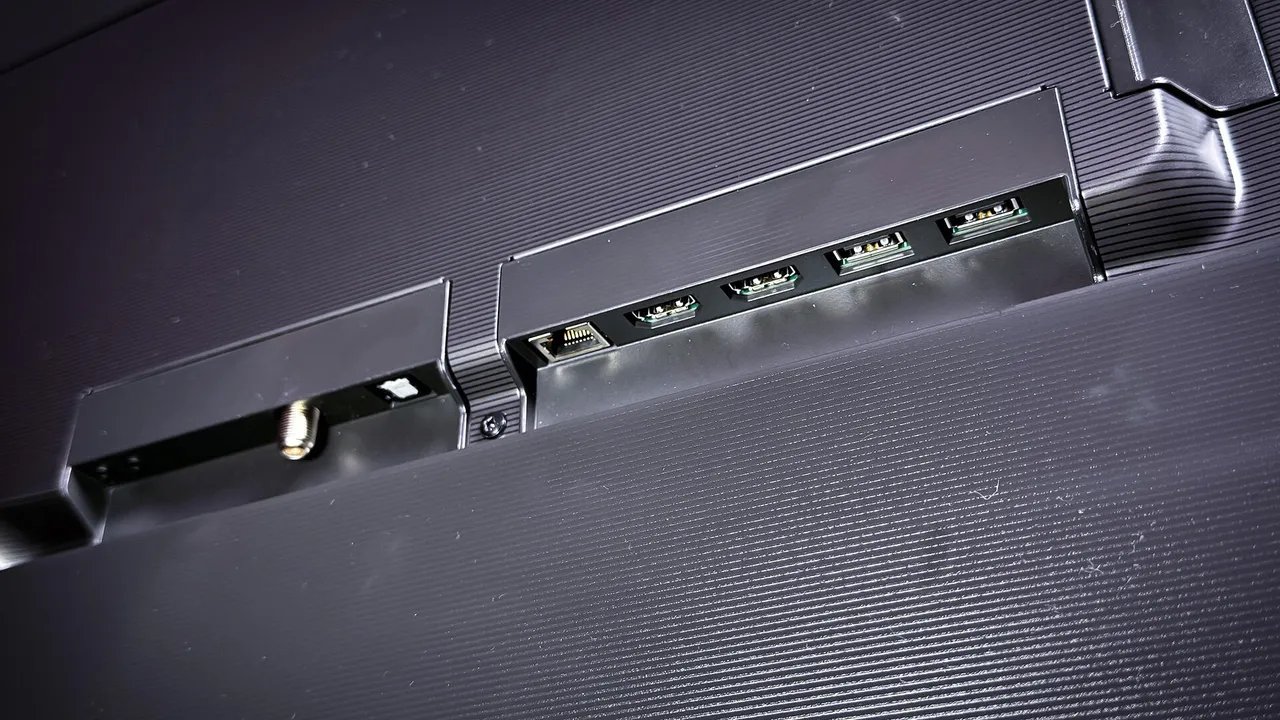

Take a peek in the back of your TV, and you may even see — among the many acquainted HDMI and USB connections — an odd 9-pin port that does not match any cable you could have in the home (and will look acquainted if you happen to used a printer again within the Nineteen Nineties). That is your TV’s RS-232 serial port, usually reserved for connecting skilled calibration and diagnostic instruments.
Technicians on the manufacturing unit or in a restore store have particular testing gadgets that plug into the RS-232 port to check sign transmission energy, debug software program, and verify for electrical injury.
The RS-232 port can be utilized in each sensible house and industrial settings by enabling you to attach a number of TVs to a single supply for customized broadcasts. Everytime you go to a physician’s workplace or an airport the place a number of screens present the identical reels of commercials and security bulletins, you are seeing the RS-232 connection at work.
Additionally: The best TVs to buy: Expert tested and recommended
Whereas this port is usually reserved for enterprise use, in case you have the cash and want, you should use the RS-232 connection to arrange a customized multi-room broadcast system; you’ll be able to watch the identical content material in a number of rooms all through your home in excellent sync, or create customized, curated playlists in your home-based enterprise, youngsters’ playroom, or your subsequent home social gathering.
Which TVs have an RS-232 port?
Whereas many manufacturers embody an RS-232 port in sensible TV builds, it is normally reserved for the higher-end fashions. Business-grade TVs will even embody a connection, as they’re particularly designed to be used in RS-232 broadcast programs. Some midrange fashions from extra established manufacturers like LG might function an RS-232 connection, nevertheless it’s uncommon to see one on a funds mannequin.
Utilizing the RS-232 port at house
Utilizing the RS-232 in your TV is not for the faint of coronary heart or technology-averse. But when you understand how to code, establishing an automatic video feed is pretty easy. You will want both an RS-232 cable or RS-232-to-Bluetooth adapter and a pc.
As soon as you have obtained your TV linked to your PC or laptop computer, you’ll be able to create code protocols for precision timing, to specify the content material to incorporate, and to specify the place to broadcast your content material.
Additionally: I changed 13 settings on my TV to dramatically improve its performance – here’s how
One other gadget you will want shall be a Serial Port/HDMI matrix. This acts because the central hub in your system, connecting your PC, most important TV, and satellite tv for pc screens to a single change field for an all-in-one management resolution. Matrix receivers provide a spread of connectivity choices, with some supporting as much as 32 separate HDMI inputs and outputs for establishing industrial programs.
Nonetheless, for house use, an 8×8 HDMI matrix shall be greater than sufficient to deal with an informal system. Many HDMI matrix bins even have Ethernet and Wi-Fi connectivity, so you’ll be able to stream net content material from apps like Netflix and HBO Max, in addition to YouTube and Twitch. You too can discover fashions that assist Dolby and DTS audio passthroughs for customized sound programs to reinforce your TV audio system or play separate audio.
Discovering the best programming language
Since every system is exclusive, you will must verify which programming language your gadgets use to speak with each other and course of audio and visible alerts. These applications are sometimes proprietary and require a good bit of information to correctly modify in your specific setup.
In case you want a jumping-off level, yow will discover step-by-step coding guides for controlling particular manufacturers and gadget programs on GitHub; coding languages vary from HTML and C# to Python and Java (and every thing in between), so that you should not have bother discovering a management module that works for you.
Additionally: Your TV may be tracking your viewing data – here’s how to stop it (beyond disabling ACR)
In case you’re seeking to monitor your sensible TV’s well being by way of the RS-232 port, you should purchase a signal tester for round $20. Many are suitable with Home windows, MacOS, and Linux, permitting you to seamlessly combine your sensible TV into your PC setup, irrespective of which working system you employ.
An RS-232 tester will verify for lifeless or broken connector pins, sign energy, and communication between your TV and PC; if any points come up, you will get detailed suggestions on the issue for quick troubleshooting and options.
Backside line
If you’re into Dwelling Assistant, Crestron, or Roomie Distant, the RS-232 port is a goldmine. It’s considerably extra dependable than IR blasters (which will be blocked) or CEC (which is notoriously buggy). Simply perceive that establishing the RS-232 port to deal with your automations or different personalised duties will take time and studying.
